Protection systems designed for steer-by-wire integration

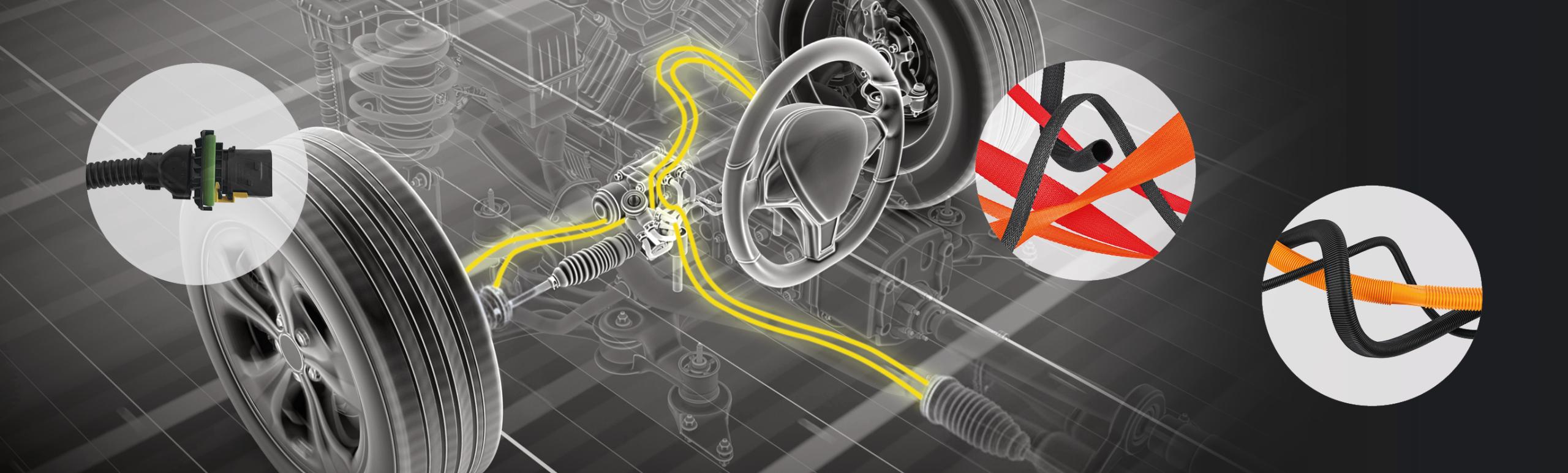

Steer-by-Wire: cable protection for demanding cable routing in vehicles


Steer-by-wire architectures replace mechanical steering links with electronic signal transmission, creating new requirements for the routing and protection of cables and wires in vehicles.

FRÄNKISCHE Industrial Pipes develops solutions for cable protection in demanding automotive applications.
The focus is on reliable cable routing and the mechanical protection of cables and wires, even during dynamic movements, high vibration loads, limited installation space, and complex installation scenarios.

Cable protection for the unique conditions in steering areas

Steer-by-wire applications require sophisticated cable routing in a technically demanding environment.

Depending on the area of use, the following properties can be relevant:

  • Dynamic movements: suitable for applications with continuous movements in steering zones
  • Mechanical protection: protection of cables and wires under mechanical stress and against abrasion
  • Vibration loads: solutions for areas of use with high mechanical vibrations
  • Compact installation spaces: designs for limited installation space and complex cable routing
  • Temperature resistance: for defined temperature ranges depending on the version
  • Chemical/Media resistance: for defined media and operating conditions depending on the version
  • Environmental resistance: for defined environmental conditions depending on the version


The right solution for the respective application

The portfolio of FRÄNKISCHE Industrial Pipes enables the selection of suitable protection solutions according to the structural and technical conditions of the respective cable routing.
Crucial factors include the movement profile, mechanical stress, available installation space, as well as the temperature, media, and environmental influences occurring at the installation site.

This results in a solution tailored to the respective application for cable routing in the vehicle, and particularly for demanding areas such as steer-by-wire.

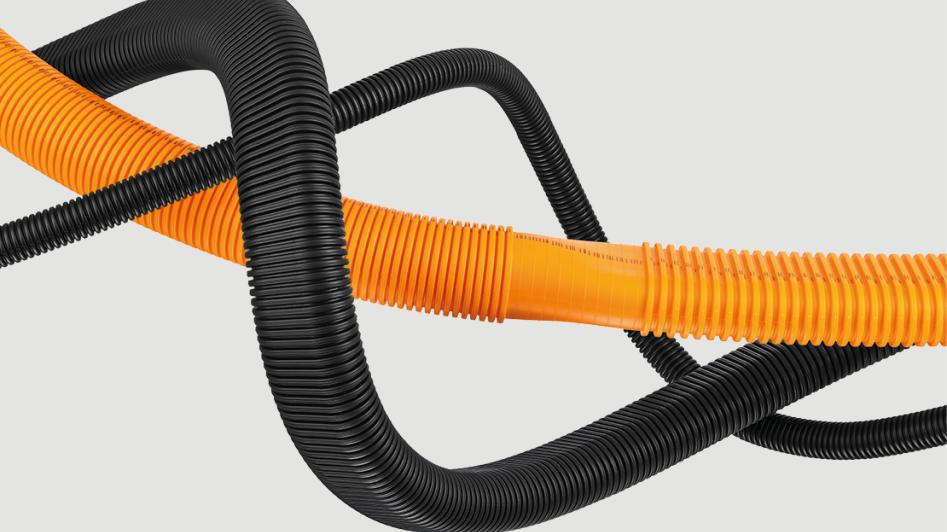

Corrugated tubing systems
Corrugated tubing systems

For diverse requirements in steering assemblies.

Depending on the version:

  • Mechanical stability with low wall thickness
  • Vibration and abrasion resistance
  • Various materials and geometries
  • Solutions for confined installation spaces
  • Reliable signal transmission during movement

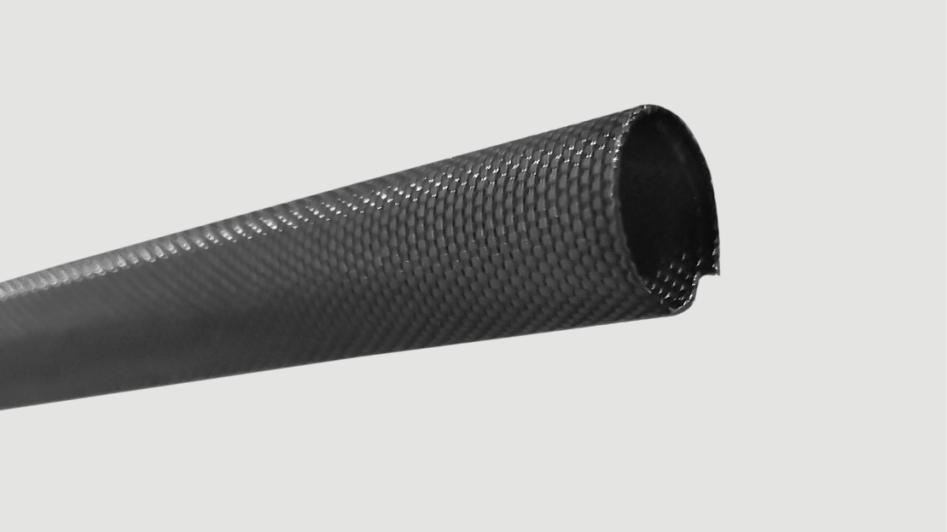

Protective sleeves
Protective sleeves

Additional protection where cables are exposed to friction or movement.

Depending on the version:

  • Lightweight and highly flexible
  • Strong abrasion resistance
  • Suitable for dynamic steering environments
  • Temperature and media resistant

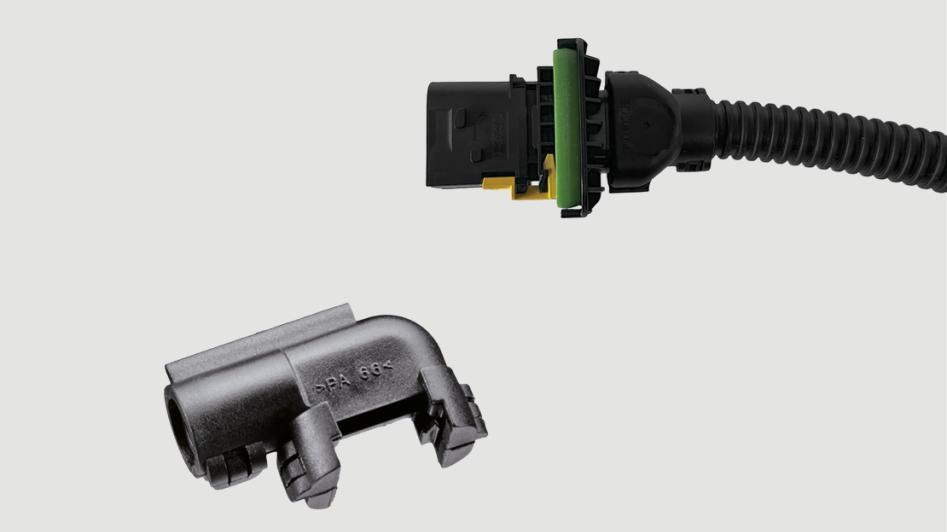

Connector protection caps
Connector protection caps

Secure sealing and protection of sensitive interfaces.

Depending on the version:

  • Protection against contamination and mechanical stress
  • Reliable electrical connection integrity
  • Precise fit for automotive connector systems
  • Designed for long-term durability

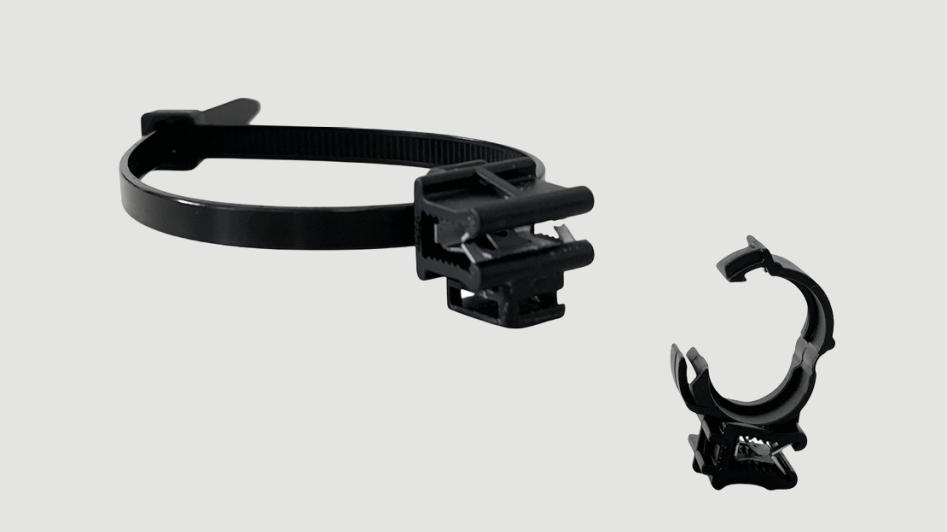

Cable fixation and routing components
Cable fixation and routing components

Ensuring stable positioning of wiring throughout vehicle lifetime.

Depending on the version:

  • Robust cable ties
  • Secure routing and fixation
  • Reduced movement-related wear
  • Process-safe installation

New challenges for electric steering architectures

  • Optimized geometry for dynamic routing

  • Weight-efficient protection concepts

  • Packaging-optimized solutions

  • Durable abrasion and vibration resistance

  • Integration into existing E/E architectures

Engineering focus:



All components are engineered to function as part of a coordinated protection and routing system.

From component supplier to steering architecture partner


Steer-by-wire systems demand more than individual protection elements. They require a fully engineered routing concept that performs reliably under dynamic steering conditions.

FRÄNKISCHE Industrial Pipes supports OEMs and system integrators from concept phase to series production.

ENGINEERING SUPPORT

where it matters most.



  • early-phase routing and packaging analysis
  • identification of critical wear and movement zones
  • selection of materials and geometries based
  • on application load cases
  • integration into existing E/E architectures
  • support during validation and testing

DESIGNed

for series performance.



  • stable protection under vibration and continuous movement
  • long-term durability across vehicle lifetime
  • repeatable and process-safe installation
  • variant-capable solutions for platform strategies
  • global industrialization capability
