Track side

Track side

FIPSYSTEMS® stands for high-quality product solutions made from selected materials for railway applications.

The fields of application for our FIPSYSTEMS® products are diverse and include, among others, trackside applications, power supplies and data lines, high-voltage lines, ticket vending machines, information systems, video surveillance systems, grade crossings, rail sensor technology, as well as signaling, control, and command systems. Furthermore, FIPSYSTEMS® product solutions are suitable for retrofitting and repair work.


FIPSYSTEMS® cable protection solutions with various product properties are available for different requirements and fields of application.
Depending on the product and design, these include, among others:

  • Reliable protection for exposed or sensitive wiring and lines
  • Compliance with relevant fire protection regulations
  • High dynamic load capacity
  • Good chemical and mechanical resistance
  • Good abrasion properties
  • High weather resistance

Highest performance for railway technology

FRÄNKISCHE Industrial Pipes (FIP) offers comprehensive product solutions for the efficient and effective mechanical protection of cables and sensitive data lines.
The FIP cable protection systems FIPSYSTEMS® primarily protect the electrical insulation of cables, wires, and data lines routed in conduits or woven sleeving against a wide variety of external influences.
In this way, they can contribute to improving the RAMS / LCC characteristics of electrical applications and equipment.

Application: Roof transitions

Intercar jumpers for electrical lines are exposed to high mechanical and weather-related stresses. Especially for cable transitions between railcars, high flexibility, reliable fatigue strength, and weather resistance are therefore essential.
FIPSYSTEMS® cable protection solutions are designed for these demanding operating conditions. They combine high flexibility with proven resistance to continuous mechanical stress and weathering effects, thereby supporting safe and reliable cable routing even under recurring loads.

For various installation requirements, the FIPSYSTEMS® product range also offers a wide variety of accessory solutions for a precise fit and professional installation.



Application: Carriage transitions

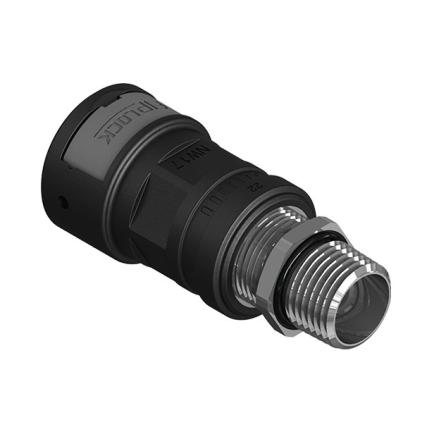

Side-to-side intercar jumpers are exposed to particular mechanical stresses due to dynamic bending and torsional movements. Suitable brackets and protectors complement FIPLOCK® cable protection conduits and FIPLOCK® ONE connectors to form a coordinated solution for cable routing.
The components are designed for use under changing operating temperatures and different climatic conditions, supporting stable and secure cable routing even during dynamic movements.



Application: Couplers

Electrical coupler connections are frequently exposed to mechanical and weather-related stresses. FRÄNKISCHE Industrial Pipes offers application-specific solutions with defined technical properties for this purpose. A high system ingress protection rating and a mechanical design tailored to the respective application support the reliable use of the connection solutions even under demanding environmental conditions.

Application: Wheel sensors and sanding systems

Wheel sensors and heating lines for sanding systems are exposed to diverse environmental influences and, in some cases, severe vibrations. Reliable connections and a coordinated cable protection system are therefore critical for the application.

FIPSYSTEMS® cable protection conduits and fittings are designed for the requirements of these applications and support the secure connection of cables and lines. The focus is placed on connection strength, system ingress protection, and mechanical resistance.

Application: Passenger areas

Cables and sensitive data lines in modern surveillance, telecommunication, and information systems place special demands on cable routing in the passenger area. Cable protection conduits and matching fittings enable protected and application-specific installation in and on rail vehicles.

A wide variety of FIPLOCK® mounting solutions support the secure installation and fastening of the lines. If required, lines can be retrofitted or replaced. For applications in the passenger area, FIP offers products with fire protection properties tested and classified according to EN 45545.



Application: Control-/Monitoring systems

Selected FIP cable protection products are particularly suitable for the pre-assembling of cable harnesses, for proper cabling of control- and monitoring systems. The FIPSYSTEMS® program includes corrugated conduits and connections for a controlled protected supply line to the control/monitoring cabinets or textile hoses for a clean and abrasion-protected bundling of the conductors inside the cabinets.

Application: Track side

For more information about our FIPSYSTEMS® products on track side applications, click here.

The increasing monitoring of rail vehicles and rail infrastructure places high demands on secure and fast data transmission. Suitable cable protection solutions are therefore required for signaling systems, switches, and grade crossings.
FIPSYSTEMS® offers various product solutions for the protection of cables and sensitive data lines. Depending on the product used, different properties are available for protection against weathering effects, mechanical stresses, and other environmental conditions.
