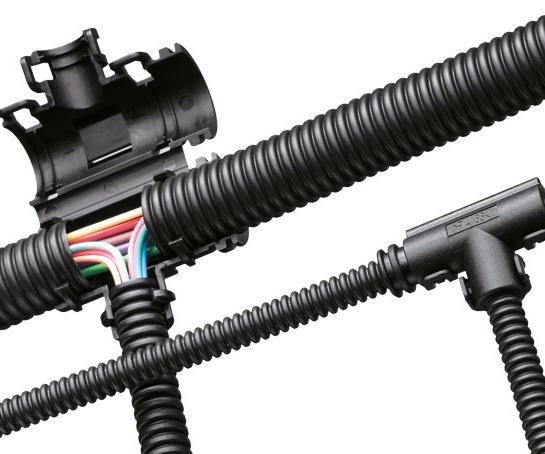

T-snap-lock manifold

T-snap-lock manifold
T-snap-lock manifold
Contents
Contact search

Description

  • connection of corrugated tubes as well as holding cable ties and fixed points at 90 degree angles
  • connection using film hinge, can be strung together
  • can be sealed reliably (click system)
  • self-extinguishing according to UL 94 HB/V-2 FMVSS
  • robust, high mechanical and chemical resistance



Standard material: PA6.6 (PA4.6 also possible on customer request)

Temperature resistance: –40 to 135°C (T1 – T3)

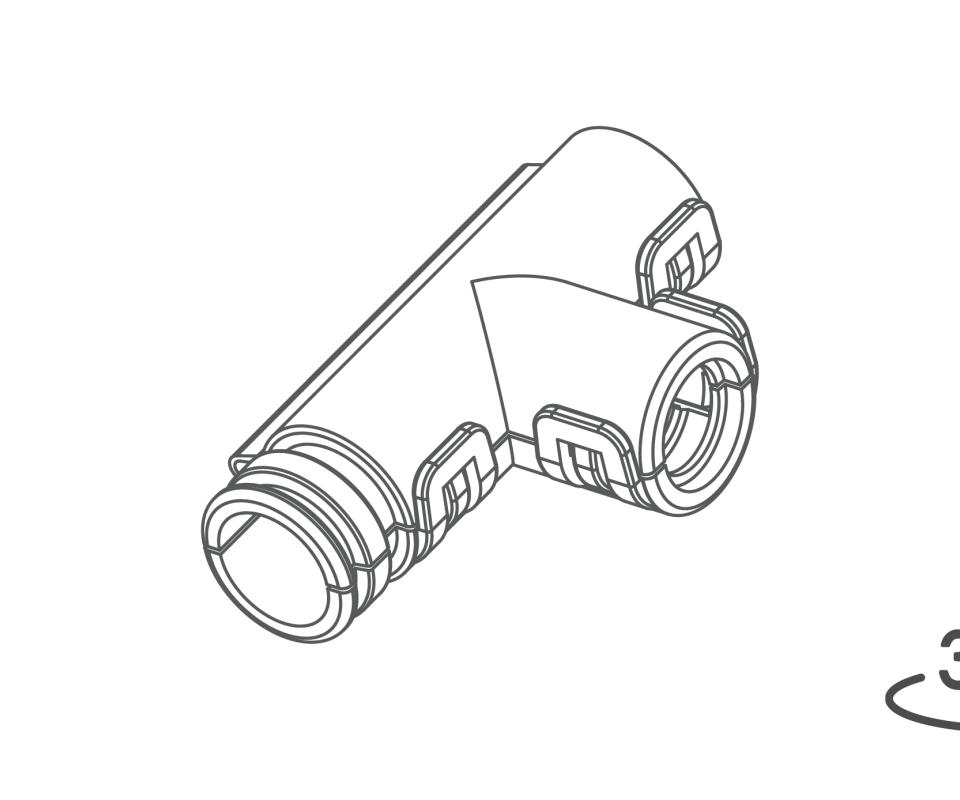

360° view

T-snap-lock manifold, type A

with rail for fixed point, lengthwise

3D
10
Model 2,49 KB
T-snap-lock manifold, type B

with rail for fixed point, crosswise

3D
12
Model 2,46 KB
T-snap-lock manifold, type C

optimized snap-lock, without rail for fixed point

3D
14
Model 2,49 KB
T-snap-lock manifold, type E

with rail for fixed point, crosswise

3D
17
Model 2,44 KB
T-snap-lock manifold, type D

optimized snap-lock, cannot be strung together,
without rail for fixed point

3D
16
Model 2,49 KB
