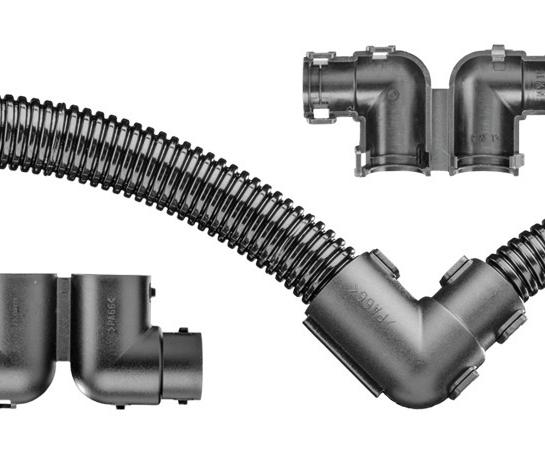

Elbow

Elbow
Elbow
Contents
Contact search

Description

  • reliable and stable 90° corrugated tube connection
  • outside-gripping
  • fast assembly (pre-locking mechanism)
  • tuned to corrugated tube diameters
  • self-extinguishing according to UL 94 HB/V-2 FMVSS



Standard material: PA6.6 (PA4.6 also possible on customer request)

Temperature resistance: –40 to 135°C (T1 – T3)

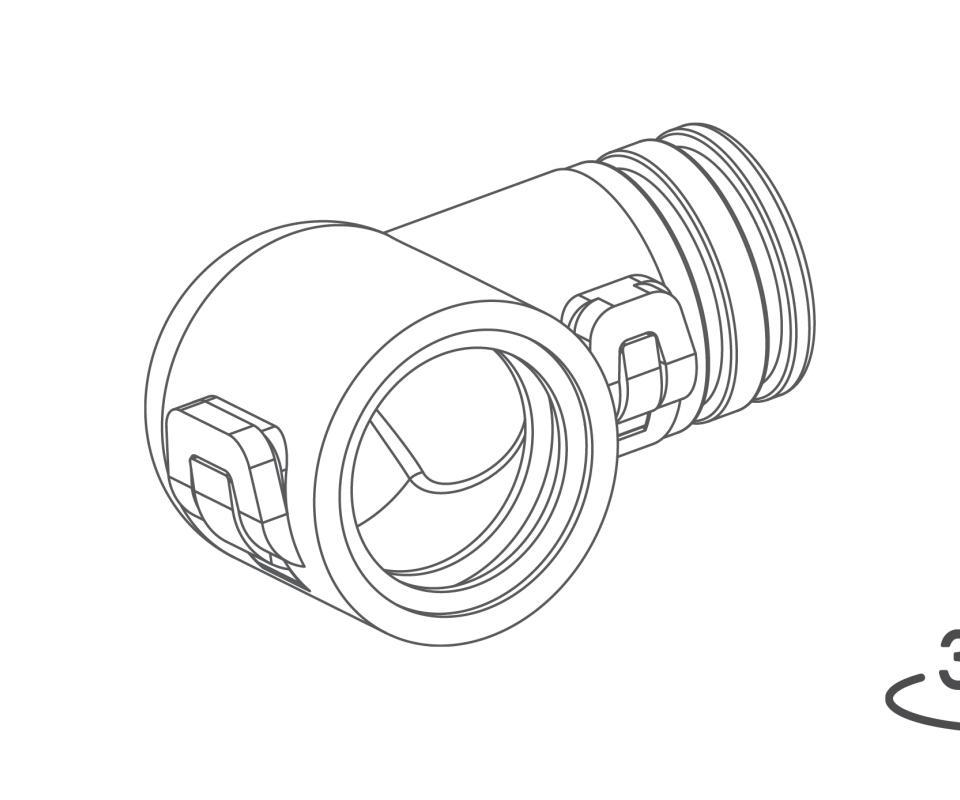

360° view

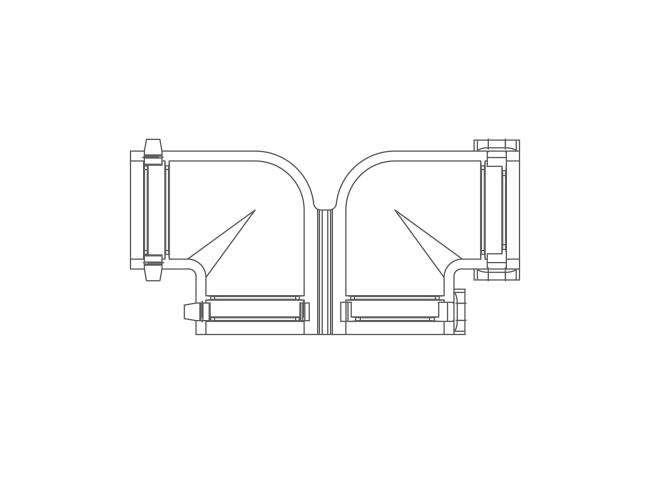

Elbow, type A

outside-gripping, rotatable

3D
30
Model 2,48 KB

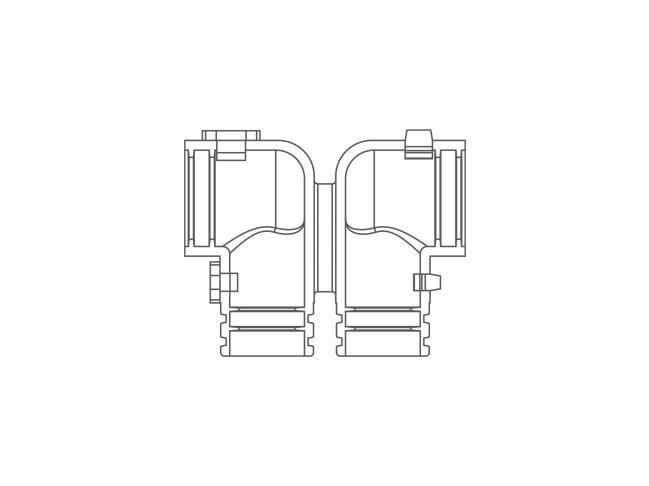

Elbow, type B

outside-gripping, rotatable, can be strung togehter

3D
32
Model 2,59 KB

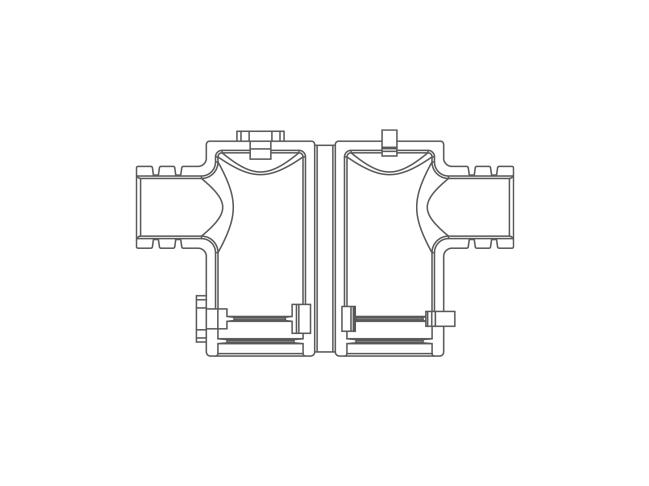

Elbow, type C
3D
33
Model 2,48 KB
